Scope of application

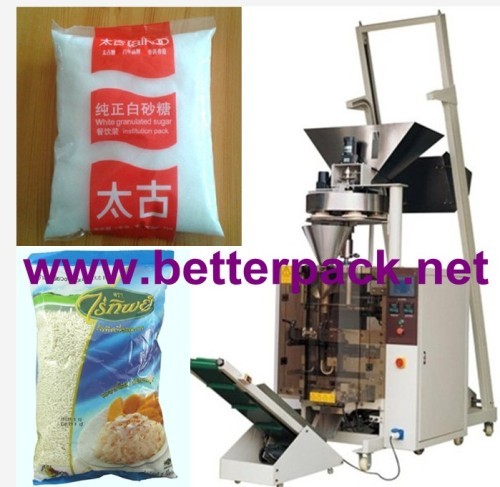

This packing system is automatic bag forming filling sealing machine, widely used for the automatic big pouch package of granular like material such assugar, beans, nuts, rice, and sweetener.

The full system include

1. Material conveyer

2 Vertical from, fill and seal machine (film width max 420mm)

3 output conveyer

Features

1. Equipped with safety protection, comply with solid safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center which maximize the whole machines control precision ,reliability and intelligent zed level.
4. This machine completes automatically the whole packing procedure of loading materials, measuring, bag making, sealing, date printing, air charging (or exhausting) and finishes products transporting as well as counting.
5. Touch screen can store the technical parameters of various kinds of products, it is unnecessary to reset while products changing.
6. With error indicating system , which help to handle the trouble immediately.
7. Make pillow bags and hanging bags in terms of customer's different requirements.

Technical Specification

Model: BT-420K

Dosage method: by volume filler

Film width: Max. 420mm

Bag Length: 80-300mm

Bag width: 60-200mm

Packing speed: 35-60bag/min

Package range: 100-1500g

Film thickness: 0.04-0.08mm

Power Source: 220/380V, 50-60hz

Machine Dimension: 1217x1015x1343

Machine Weight: 550kg
